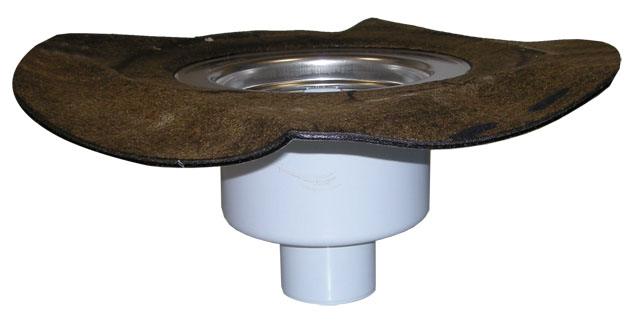

floor drain body DN50/75/110 vertical with bitumen membrane
floor drain body DN50/75/110 vertical with bitumen membrane d 500 mm for perfect and easy lap-joint waterproofing with bituminous membranes and trap seal. Comes with lot cover.
spare parts
HL0317.3EProduct overview / Floor drainsbell trap
HL0317.4EProduct overview / Floor drains / attachmentsreduction DN110xDN75
HL062B.3EProduct overview / Roof drainsadapter
attachment
HL0317.5EProduct overview / Floor drainsstrainer
HL160Product overview / Roof drains / attachmentsgravel guard d 150mm
HL66Product overview / Floor drains / vertical / without flangegrating d 145mm sleek stainless steel frame 150x150mm/138x138mm secured
HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm
HL062B.3EProduct overview / Roof drainsadapter
HL160Product overview / Roof drains / attachmentsgravel guard d 150mm
HL66.1Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant
HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm
HL062B.3EProduct overview / Roof drainsadapter
HL160Product overview / Roof drains / attachmentsgravel guard d 150mm
HL66.3Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/147x147mm/138x138mm
HL66.4Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/147x147mm/138x138mm plastic
HL66PProduct overview / Floor drains / vertical / flangegrating d 145mm sleek with PVC collar 206x206mm/138x138mm
HL66QProduct overview / Floor drains / vertical / without flangegrating d 145mm sleek/ stainless steel frame 150x150mm/138x138mm "Quadra"
HL67Product overview / Floor drains / vertical / without flangegrating round d 145mm sleek/(316) stainless steel frame d 155mm/d 145mm
HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm
HL062B.3EProduct overview / Roof drainsadapter
HL160Product overview / Roof drains / attachmentsgravel guard d 150mm
HL850Product overview / Attachmentsfire collar R90 for HL317 series
HL855Product overview / Attachmentsformwork-core with center-ring for HL850
Alternatives
HL317KProduct overview / Floor drains / vertical / flangefloor drain body DN50/75/110 vertical
HL317KHNProduct overview / Floor drains / vertical / bitumen membranefloor drain body DN75 vertical with bitumen membrane and stainless steel liner
HL84.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 500mm
extensions
HL350Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm
HL350.1Product overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1HProduct overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with bitumen membrane
HL350.2Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm with inlet DN40
used with
technical data
| material | PP, Bitumen |
| dimension | DN50/75/110 |
| capacity | 1,8 l/s |
| weight | 1,473 [kg] |
| EAN | 9003076009039 |
| installation height | 200 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 1,773 [kg] |
| EAN/pack. | 9003076009039 |
| height/width/depth | 180/385/385 [mm] |
| volume | 0,026680500 [m3] |
